Spring and Parts Feeder

Collaboration with KANTO electronics Japan

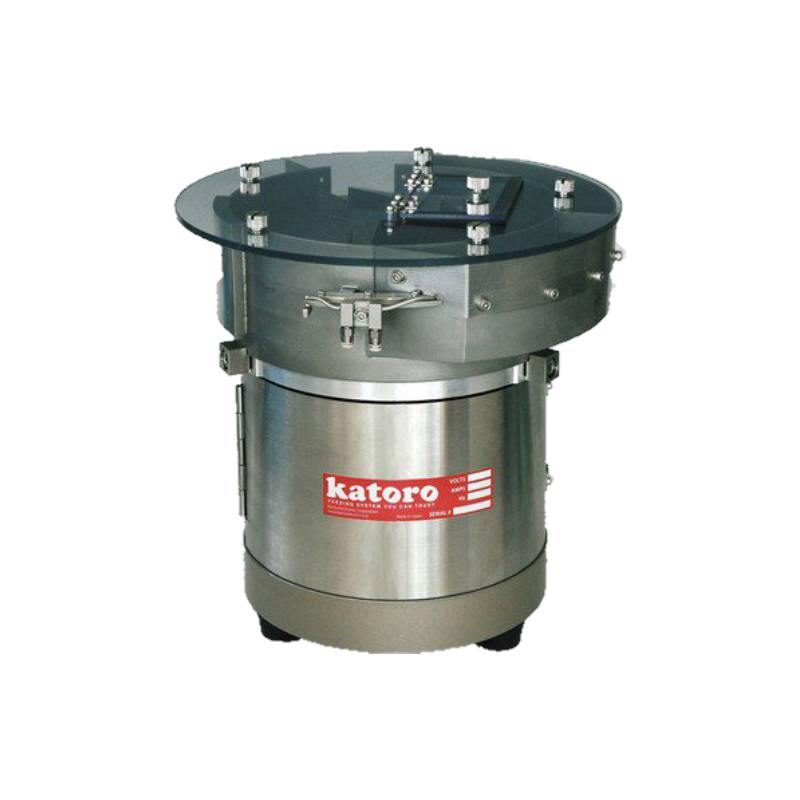

Until recently, separation, arrangement, and feeding of coil springs were considered extremely difficult, and this fact has been the principal obstacles for the stable operation of automatic manufacturing equipment.
Thanks to our unique separation and arrangement system, our spring feeder can separate, arrange and supply to the assembly point without causing damage or deformation even extremely small springs ( 0.5mm diameter minimum ) that cannot be handled by human hands.
Standard escapements are available for the assembly situations.

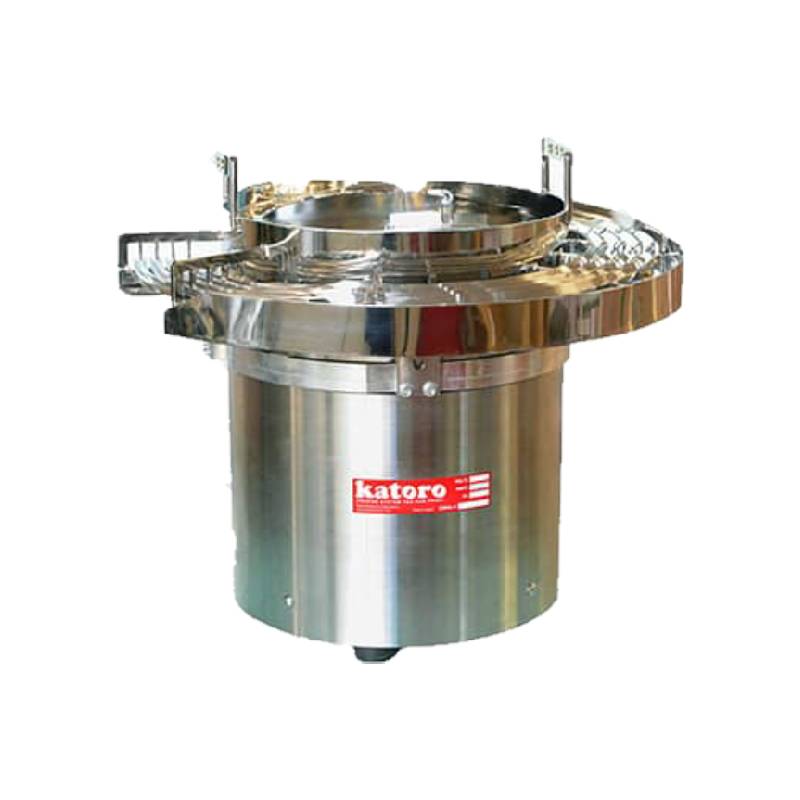

This is a bowl feeder suitable for use in a clean room.
The bowl part and the vibrating part are fixed in a vacuum, and it can be attached and detached with a switch.
Bolts for fixing are not used at all in the detachable part.
Since the bowl part uses SUS 316L material and has a full welding structure, it is safe to use the cleaning agent without leaving it inside when washing.
Hydrogen peroxide vapor corresponding parts are used for the driving part.

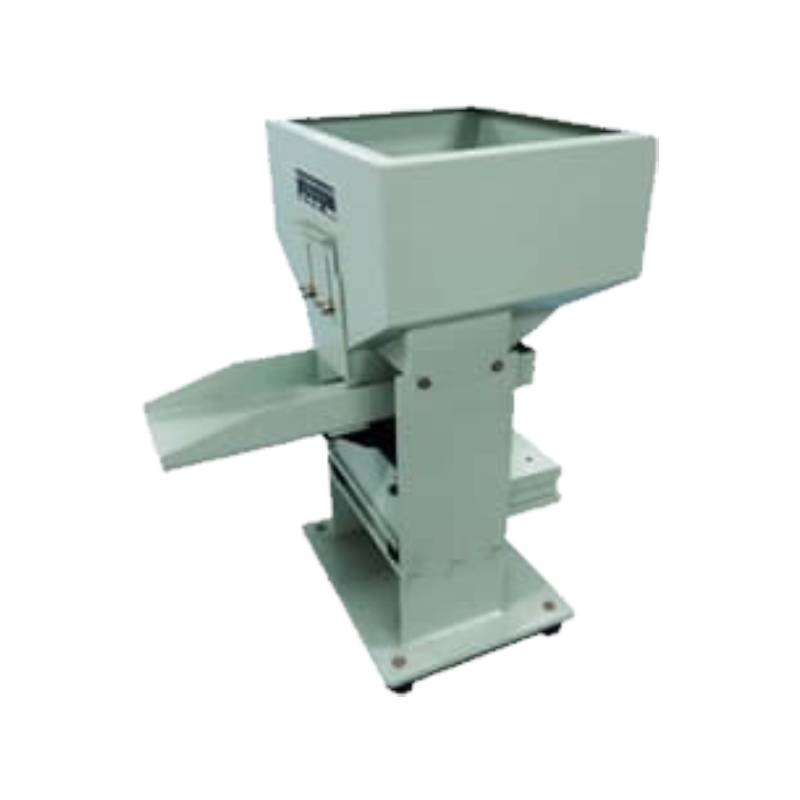

This hopper adopts newly designed horizontal trough. Therefore, it does not generate vibrations more than required and the parts in the hopper can be fed quiet and stably. No trouble inside the hopper is seen. As we have several sizes depending on the bowl feeder size, it is possible to use it as integrated unit in the line. As we have three standard types For types other than the standard type, please get in touch with us.
